Get Entities
Get Entities based on search criteria
Configuration
Search Criteria
All search criteria have to be true for an entity to be valid.
Property
Has autocompleted with all properties currently set on all loaded entities.
Inputs
payload
- Type:
Object
Override config values by passing in a property with a valid value.
- rules array
- property string
- logic string
- value string
- valueType string
- outputType string
- outputEmptyResults boolean
- outputLocationType string
- outputLocation string
- outputResultscount number
Outputs
Array
- Type:
Array
Sends an array of state objects from search criteria to the Output Location.
Count
- Type:
number
Return the total count of valid entities.
Random
- Type:
Object|Array
Return a random object or array from the available state objects to the Output Location. When One Max Results
is selected it will return an object and when more than one is selected will always return an array of state objects.
Split
- Type:
msg
part
Sends a message for each state object. In the same format as if the split node was used.
State Object Format
Sample output when the Output Type is an array:
[
{
"entity_id": "light.kitchen",
"state": "on",
"attributes": {
"brightness": 243,
"friendly_name": "Kitchen Light",
"supported_features": 33,
"icon": "mdi:light-switch"
},
"last_changed": "2019-12-29T05:38:53.016984+00:00",
"last_updated": "2019-12-29T05:38:53.016984+00:00",
"context": {
"id": "6c16e348494c42fb8c8e8bda92b20fb2",
"parent_id": null,
"user_id": null
},
"timeSinceChangedMs": 3466747
}
]
entity_id
- Type:
string
The entity to which this state belongs
state
- Type:
string
Main attribute state value, examples: 'on', 'off', 'home', 'open', 'closed', etc...
attributes
- Type:
Object
Supported attributes of state set by Vioneta Agro
last_changed
- Type:
string
ISO Date string of last time entity state changed
timeSinceChangedMs
- Type:
number
Milliseconds since last time entity state changed
last_updated
- Type:
string
ISO Date string of last time entity state was updated
context
- Type:
Object
Information on who/what changed the state of this object last.
Examples
Example 1
You have a presence detection of some sort running in Vioneta Agro and you want to get a notification when you leave if any doors or windows are left open.
Using the get entities
node here to get a possible list of entity ids [binary_sensor.front_door, binary_sensor.back_door, binary_sensor.front_window, binary_sensor.back_window] if their state is equal to open
. The entities are returned with the output Split
. This means that a message is sent for each valid entity. We then are using a template node to format the payload into the entity friendly name and joining them back into one payload using the join
node.
[{"id":"dafa6c83.24e07","type":"trigger-state","z":"7f24e6b8.eab548","name":"Left Home","entityid":"device_tracker.jason","entityidfiltertype":"exact","debugenabled":false,"constraints":[{"id":"9i2c9sz7d3e","targetType":"this_entity","targetValue":"","propertyType":"previous_state","propertyValue":"old_state.state","comparatorType":"is","comparatorValueDatatype":"str","comparatorValue":"home"},{"id":"3h3lghs8xsm","targetType":"this_entity","targetValue":"","propertyType":"current_state","propertyValue":"new_state.state","comparatorType":"is","comparatorValueDatatype":"str","comparatorValue":"not_home"}],"constraintsmustmatch":"all","outputs":2,"customoutputs":[],"outputinitially":false,"state_type":"str","x":230,"y":192,"wires":[["42dd6dce.c48ce4"],[]]},{"id":"42dd6dce.c48ce4","type":"ha-get-entities","z":"7f24e6b8.eab548","name":"","rules":[{"property":"entity_id","logic":"includes","value":"binary_sensor.front_door,binary_sensor.back_door,binary_sensor.front_window,binary_sensor.back_window","valueType":"str"},{"property":"state","logic":"is","value":"open","valueType":"str"}],"output_type":"split","output_empty_results":false,"output_location_type":"msg","output_location":"payload","output_results_count":1,"x":396,"y":192,"wires":[["301b2b51.48b104"]]},{"id":"301b2b51.48b104","type":"template","z":"7f24e6b8.eab548","name":"Format Friendly Name","field":"payload","fieldType":"msg","format":"handlebars","syntax":"mustache","template":"{{payload.attributes.friendly_name}}","output":"str","x":600,"y":192,"wires":[["8ed935f8.afbad8"]]},{"id":"8ed935f8.afbad8","type":"join","z":"7f24e6b8.eab548","name":"","mode":"custom","build":"string","property":"payload","propertyType":"msg","key":"topic","joiner":",","joinerType":"str","accumulate":false,"timeout":"","count":"","reduceRight":false,"reduceExp":"","reduceInit":"","reduceInitType":"","reduceFixup":"","x":770,"y":192,"wires":[["454131f7.c19f"]]},{"id":"454131f7.c19f","type":"api-call-service","z":"7f24e6b8.eab548","name":"Notify","version":1,"debugenabled":false,"service_domain":"notify","service":"push_jason","entityId":"","data":"{\"message\": \"The {{payload}} are open.\",\"title\": \"Left Open\"}","dataType":"json","mergecontext":"","output_location":"payload","output_location_type":"msg","mustacheAltTags":false,"x":898,"y":192,"wires":[[]]}]
Example 2
Sort of a Vacation or Away script to randomly turn on some lights around your home.
Using an inject
node here but you could use your preference of timer node. The get entities
node is randomly choosing one entity from the criteria where entity_id starts with light.
.
[{"id":"39342a95.8db3d6","type":"inject","z":"c86782e1.cf429","name":"","topic":"","payload":"","payloadType":"date","repeat":"","crontab":"","once":false,"onceDelay":0.1,"x":252,"y":256,"wires":[["e9038030.b79e4"]]},{"id":"e9038030.b79e4","type":"ha-get-entities","z":"c86782e1.cf429","name":"","rules":[{"property":"entity_id","logic":"starts_with","value":"light.","valueType":"str"}],"output_type":"random","output_empty_results":false,"output_location_type":"msg","output_location":"payload","output_results_count":1,"x":402,"y":256,"wires":[["2586f129.6136fe"]]},{"id":"58c67712.8aa4a8","type":"delay","z":"c86782e1.cf429","name":"","pauseType":"random","timeout":"5","timeoutUnits":"seconds","rate":"1","nbRateUnits":"1","rateUnits":"second","randomFirst":"20","randomLast":"30","randomUnits":"minutes","drop":false,"x":732,"y":256,"wires":[["986369ca.af3f48"]]},{"id":"2586f129.6136fe","type":"api-call-service","z":"c86782e1.cf429","name":"Turn on Light","version":1,"debugenabled":false,"service_domain":"light","service":"turn_on","entityId":"{{payload.entity_id}}","data":"","dataType":"json","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":562,"y":256,"wires":[["58c67712.8aa4a8"]]},{"id":"986369ca.af3f48","type":"api-call-service","z":"c86782e1.cf429","name":"Turn off Light","version":"1","debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"{{payload.entity_id}}","data":"","dataType":"json","mergecontext":"","output_location":"payload","output_location_type":"msg","mustacheAltTags":false,"x":898,"y":256,"wires":[[]]}]
Example 3
On Reddit the other day a user posted this How can I join 1 to 4 pre-defined messages together based on 4 separate entity states? (Their solution can be found in the post)

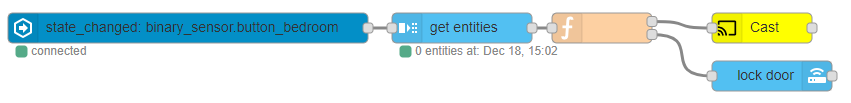

Here's my take on it using the get entities
and a function
node. Using the Array
output option here.
[{"id":"2bdd6fb7.15743","type":"server-state-changed","z":"3c84cc55.8f02f4","name":"","version":"1","exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"binary_sensor.button_bedroom","entityidfiltertype":"substring","outputinitially":false,"state_type":"str","haltifstate":"","halt_if_type":"str","halt_if_compare":"is","outputs":1,"output_only_on_state_change":false,"x":276,"y":224,"wires":[["c2a9ffac.1e05d"]]},{"id":"c2a9ffac.1e05d","type":"ha-get-entities","z":"3c84cc55.8f02f4","name":"","rules":[{"property":"entity_id","logic":"includes","value":"sensor.phon_charging,sensor.watch_charging,sensor.kaylas_phone_charging,lock.lock","valueType":"str"},{"property":"state","logic":"includes","value":"no,unlocked","valueType":"str"}],"output_type":"array","output_empty_results":true,"output_location_type":"msg","output_location":"payload","output_results_count":1,"x":550,"y":224,"wires":[["2950c181.1ef95e"]]},{"id":"2950c181.1ef95e","type":"function","z":"3c84cc55.8f02f4","name":"","func":"let lockFD = null;\nlet PC = false;\nlet WC = false;\nlet KP = false;\nlet FD = false;\n\nmsg.payload.forEach(entity => {\n switch(entity.entity_id) {\n case \"sensor.phone_charging\":\n PC = true;\n break;\n case \"sensor.watch_charging\":\n WC = true;\n break;\n case \"sensor.kaylas_phone_charging\":\n KP = true;\n break;\n case \"lock.lock\":\n FD = true;\n lockFD = { payload: true };\n break;\n }\n \n});\n\nlet message = \"Goodnight.\";\nif(PC && WC) {\n message = `${message} Don’t forget to charge your phone and watch.`;\n} else {\n message = `${message} Don’t forget to charge your ${PC ? 'phone' : 'watch'}.`\n}\nif(KP) {\n message = `${message} Remind Kayla to charge her phone${PC ? ' too':''}.`;\n}\nif(FD) {\n message = `${message} The door is now locked.`\n}\nmsg.payload = message;\nreturn [msg, lockFD];\n","outputs":2,"noerr":0,"x":690,"y":224,"wires":[["ca4a5643.9bf0d8"],["64374b0e.f72394"]]},{"id":"ca4a5643.9bf0d8","type":"cast-to-client","z":"3c84cc55.8f02f4","name":"","url":"","contentType":"","message":"","language":"en","ip":"192.168.1.29","port":"","volume":"40","x":874,"y":224,"wires":[[]]},{"id":"64374b0e.f72394","type":"api-call-service","z":"3c84cc55.8f02f4","name":"lock door","version":"1","debugenabled":false,"service_domain":"scene","service":"turn_on","entityId":"scene.lock_door","data":"","dataType":"json","mergecontext":"","output_location":"payload","output_location_type":"msg","mustacheAltTags":false,"x":844,"y":272,"wires":[[]]}]
Disclaimer: All these examples are untested but should give you a general idea of how to use it.
