Call Service Tips and Tricks
Homeassistant Domain
The homeassisant
domain can be used with different domains of entities with certain services.

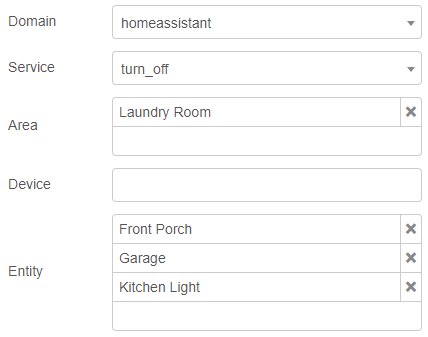

Here's an example of using the homeassistant
domain to turn off some lights, switches, and everything that can be turned off in the laundry room in a single service call. This can save you from having to have multiple call-service nodes.
Using Mustache Templates
Mustache templates can be used in the domain, service, and entity id fields. This is useful if you want to set the service based on msg.payload
or any other message property.

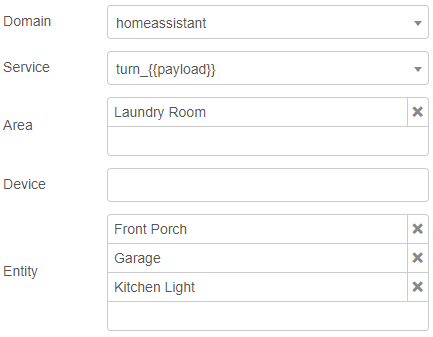

Here's an example using eztimer to set the output of the node to on
or off
. Then use that in the call-service node for which service to use.
[{"id":"522c54b8de855062","type":"api-call-service","z":"a38123c1.2fd3f","name":"","server":"","version":4,"debugenabled":false,"domain":"homeassistant","service":"turn_{{payload}}","target":{"areaId":["75a88dfa58844f8aad752dde5bc51fc7"],"deviceId":[],"entityId":["light.front_porch","light.garage","light.kitchen"]},"data":"","dataType":"jsonata","mergeContext":"","mustacheAltTags":false,"outputProperties":[],"queue":"none","x":526,"y":672,"wires":[[]]},{"id":"cca91c6fe47d7fa0","type":"eztimer","z":"a38123c1.2fd3f","name":"","debug":false,"autoname":"sunset - dawn","tag":"eztimer","suspended":false,"sendEventsOnSuspend":false,"latLongSource":"manual","latLongHaZone":"","lat":"","lon":"","timerType":"1","startupMessage":true,"ontype":"1","ontimesun":"sunset","ontimetod":"17:00","onpropertytype":"msg","onproperty":"payload","onvaluetype":"str","onvalue":"on","onoffset":0,"onrandomoffset":0,"onsuppressrepeats":false,"offtype":"1","offtimesun":"dawn","offtimetod":"dusk","offduration":"00:01:00","offpropertytype":"msg","offproperty":"payload","offvaluetype":"str","offvalue":"off","offoffset":0,"offrandomoffset":0,"offsuppressrepeats":false,"resend":false,"resendInterval":"0s","mon":true,"tue":true,"wed":true,"thu":true,"fri":true,"sat":true,"sun":true,"x":272,"y":672,"wires":[["522c54b8de855062"]]}]
Mustache templates are also accepted in the data field when their type is set to JSON.
Also see:
Targets
The target fields allow you to target areas, devices, and/or entities. Any combination can be used when they are available, some services don't accept areas and devices.
Mustache templates and environment variables can be used inside each target list.
Data Field
TIP
It's recommended to use the JSONata expression, J: Expression
, for the data field as it has several advantages over JSON.
- Handles quotes based on the type of variable
- Allows the insertion of more complex variables such as arrays and object
- Mathematical operations are permitted
Inserting a message property into a string

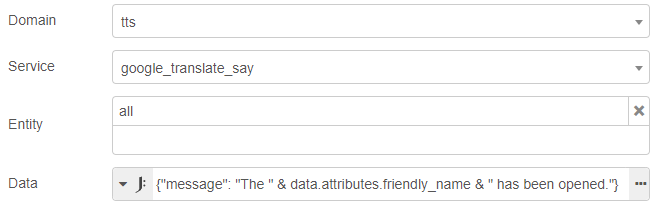

Sending a TTS message when a door is opened
{ "message": "The " & data.attributes.friendly_name & " has been opened." }
[{"id":"cd1f9610a73addbc","type":"server-state-changed","z":"a38123c1.2fd3f","name":"","server":"","version":4,"exposeToHomeAssistant":false,"haConfig":[{"property":"name","value":""},{"property":"icon","value":""}],"entityidfilter":"sensor\\..+_door$","entityidfiltertype":"regex","outputinitially":false,"state_type":"str","haltifstate":"open","halt_if_type":"str","halt_if_compare":"is","outputs":2,"output_only_on_state_change":true,"for":0,"forType":"num","forUnits":"minutes","ignorePrevStateNull":false,"ignorePrevStateUnknown":false,"ignorePrevStateUnavailable":false,"ignoreCurrentStateUnknown":false,"ignoreCurrentStateUnavailable":false,"outputProperties":[{"property":"payload","propertyType":"msg","value":"","valueType":"entityState"},{"property":"data","propertyType":"msg","value":"","valueType":"eventData"},{"property":"topic","propertyType":"msg","value":"","valueType":"triggerId"}],"x":338,"y":560,"wires":[["4e016826f6497b79"],[]]},{"id":"4e016826f6497b79","type":"api-call-service","z":"a38123c1.2fd3f","name":"send tts","server":"","version":4,"debugenabled":false,"domain":"tts","service":"google_translate_say","target":{"areaId":[],"deviceId":[],"entityId":["all"]},"data":"{\"message\": \"The \" & data.attributes.friendly_name & \" has been opened.\"}","dataType":"jsonata","mergeContext":"","mustacheAltTags":false,"outputProperties":[],"queue":"none","output_location":"","output_location_type":"none","x":570,"y":560,"wires":[[]]}]
Getting a property value of a Vioneta Agro entity
There's a custom function in JSONata inside Vioneta Agro nodes that allows the fetching of any property of an HA entity.
$entities()
returns all entities in the cache$entities("entity_id")
returns a single entity from the cache matching the passed inentity_id
Example of getting the friendly name of an entity
{ "message": "The " & $entities("binary_sensor.front_door").attributes.friendly_name & " has been opened." }
on
state
Example of getting friendly names of all the lights and switches with an {
"message": "The " & $join($entities().*[state = "on" and entity_id ~> /^light|^switch/].attributes.friendly_name, ", ") & " are on.",
"title": "Left On"
}
Doing arithmetic
Vioneta Agro states are represented as strings so to be able to do arithmetic on them in JSONata they will need to be cast to a number first use $number()
. Most attributes of entities are in their correct state but it never hurts to be safe and cast them as a number.
$number($entities("sensor.kitchen_lux").state)

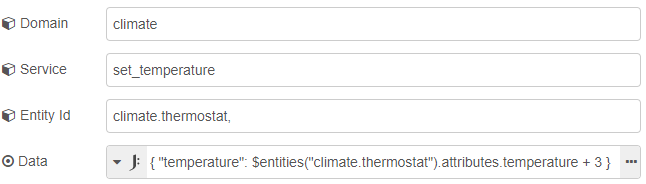

Adding 3 to the current temperature of a climate entity
{ "temperature": $entities("climate.thermostat").attributes.temperature + 3 }

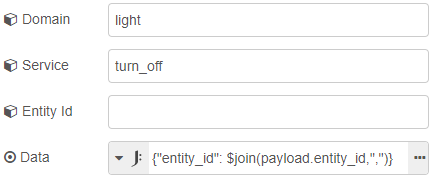

Create a comma-delimited entity id list
Example of getting a list of lights from the get-entities node and then creating an entity id list to turn them off. The entity id field is left blank in this example as it is defined in the data field.
{ "entity_id": $join(payload.entity_id, ",") }
[{"id":"80c20ba2.f09cd8","type":"ha-get-entities","z":"f731b121.0463a","server":"","name":"get lights that are on","rules":[{"property":"entity_id","logic":"starts_with","value":"light.","valueType":"str"},{"property":"state","logic":"is","value":"on","valueType":"str"}],"output_type":"array","output_empty_results":false,"output_location_type":"msg","output_location":"payload","output_results_count":1,"x":468,"y":528,"wires":[["cafbf446.080928"]]},{"id":"cafbf446.080928","type":"api-call-service","z":"f731b121.0463a","name":"turn them off","server":"","version":1,"debugenabled":false,"service_domain":"light","service":"turn_off","entityId":"","data":"{\"entity_id\": $join(payload.entity_id,\",\")}","dataType":"jsonata","mergecontext":"","output_location":"","output_location_type":"none","mustacheAltTags":false,"x":662,"y":528,"wires":[[]]},{"id":"39666758.cee048","type":"inject","z":"f731b121.0463a","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":284,"y":528,"wires":[["80c20ba2.f09cd8"]]}]
