Diagnostics Information
Overview

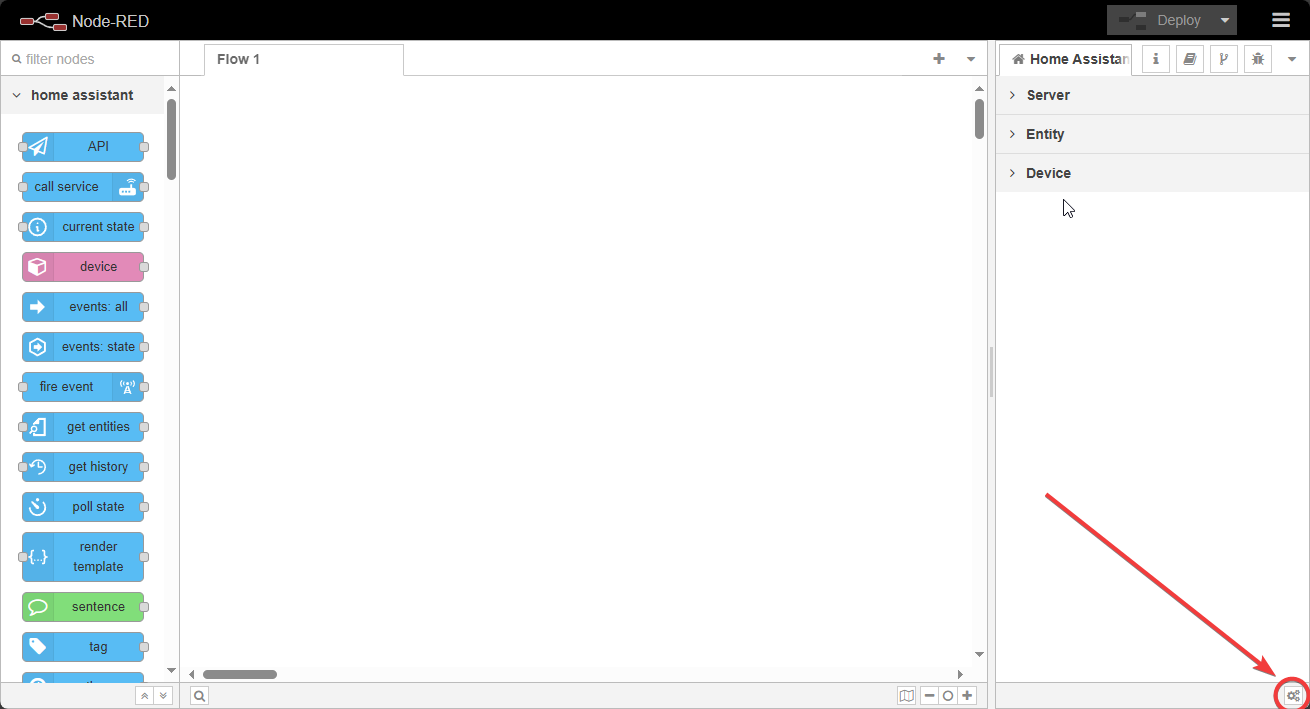

To assist with troubleshooting, a button has been added to the Node-RED editor that will run a diagnostics flow and copy the output to the clipboard. This output can then be pasted into a GitHub issue or a support forum.
Note
Before version 0.62.0, the diagnostics flow was a separate flow that had to be imported into Node-RED. This flow is still available and can be found here.
Before version 0.62.0
The supplied diagnostics flow serves as a valuable tool for collecting data about the runtime and the system environment. This flow can be imported into Node-RED and run. By doing so, it compiles crucial information regarding the runtime and the system environment, enabling users to easily share this data when addressing issues.
Flow
[{"id":"83159f9ffc81a5fd","type":"inject","z":"a3f996b014aea8a5","name":"get environment info","props":[],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","x":226,"y":608,"wires":[["11f9ee4206596633"]]},{"id":"607c82ab3a273e93","type":"debug","z":"a3f996b014aea8a5","name":"copy info from debug tab","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":582,"y":608,"wires":[]},{"id":"11f9ee4206596633","type":"http request","z":"a3f996b014aea8a5","name":"fetch","method":"GET","ret":"txt","paytoqs":"ignore","url":"http://localhost:1880/homeassistant/diagnostics","tls":"","persist":false,"proxy":"","insecureHTTPParser":false,"authType":"","senderr":false,"headers":[],"x":390,"y":608,"wires":[["607c82ab3a273e93"]]}]
This flow can also be imported directly from the examples section in Node-RED.
Usage

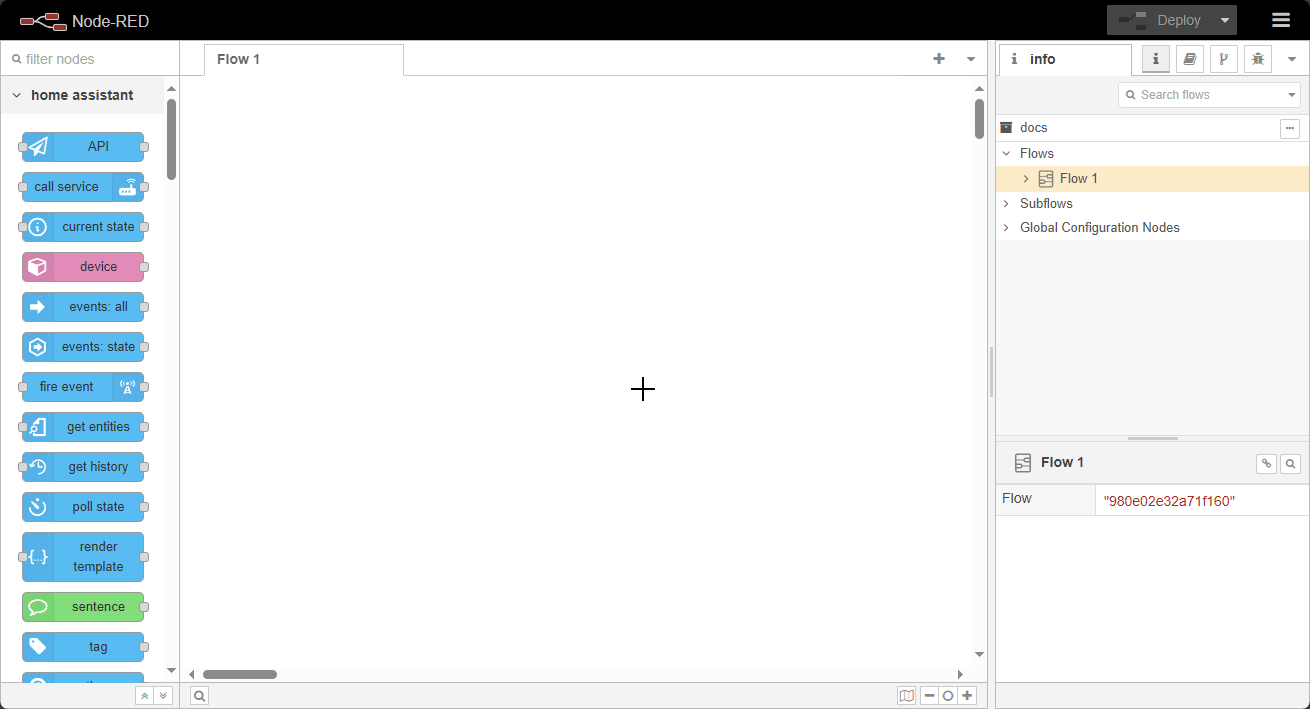

Import the flow into Node-RED.
Deploy the flow.
Click the
Inject
node to run the flow.

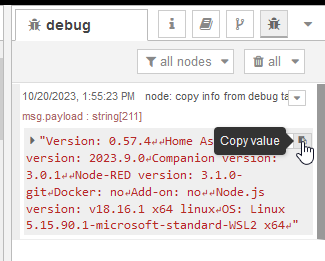

- Copy the output from the
Debug
tab.
- Paste the output into a GitHub issue or a support ticket.
